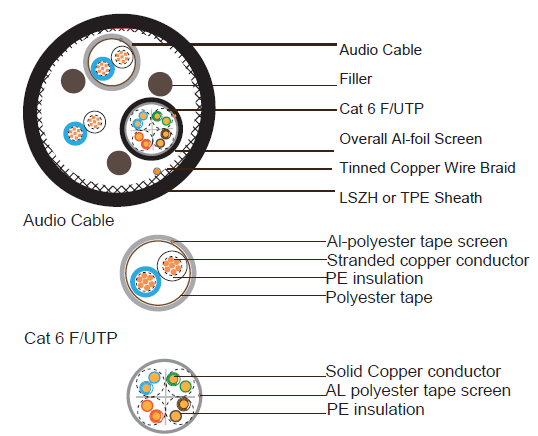

Cat6 FTP+2X24AWG+2C18AWG Audio Cable Unarmoured Composite Cable
Construction:
2C x18AWG Audio Cable
Conductor |
7/0.404mm stranded copper wire， class 2 to IEC60228. |
|---|---|
Insulation |
PE. |
Insulation Color |
Black& Red. |
|
Alumminum tape with tinned copper drain wire. Cable |
Screen |
|
2C x24AWG Audio |
|
Conductor |
7/0.2mm stranded copper wire， class 2 to IEC60228. |
Insulation |
PE. |
Insulation Color |
Green& Yellow. |
Cat 6 F/UTP
Conductor |
24 AWG Solid copper,1/0.57mm. |
|---|---|
Insulation |
PE material. Nominal diameter is 0.97mm. |
Insulation Color |
White-blue，Blue; White-orange，Orange; |
|
White-green，Green; White-brown，Brown. |
Alumminum tape with tinned copper drain wire. |
|
Screen |
|
Applications |
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; |
|
IEEE 802.5 16 MB; ISDN; TPDDI; ATM. |
Standards |
ISO/IEC 11801， IEC 61156-5，EN 50173，ANSI/TIA 568B. |
Element Assembly
Filler |
PP material . |
|---|---|
Overall Screen |
Al-Polyester tape+ tinned copper wire braiding. |
Outer Sheath |
LSZH elastomer or TPE. Nominal thickness 0.8-1.0mm. |
Sheath Color |
Black. Other colors also available upon request. |
Electrical and Physical Properties@20°C:
Audio Cable
Max.Electrical Resistance: 22Ohm/km for 18AWG Max.
Electrical Resistance: 76.4 Ohm/km for 24AWG
Min. Insulation Resistance: 1000 MOhm/km
Operating Temperature: -20°C/+70°C
Voltage rating: 300/500V
Insulation spark test: 2000 V r.m.s./H.F.
Max. Inductance: 0.75mH/km
Cat6 F/UTP (1-250MHz)
Max.Electrical Resistance: 75.6 Ohm/km
Min.Insulation Resistance: 2000 MOhm/km
Operating Temperature: -20°C/+70°C
Max.Resistance Unbalance: 5%
Max. Mutual Capacitance: 5.6nF/100m
Max. Capacitance Unbalance: 330pF/100m
Characteristic Impedance : 100 :! 15 (1-250MHz)
Nominal Velocity of Propagation: 69%
Max. Propagation Delay : 536ns/100m@100MHz
Max.Propagation Delay skew : 45ns/100m(1-125MHz)
Test voltage (DC， 1 min) Core/Core : 1000V
Fire Performance:
Flame Retardance : IEC60332-1-2
Fire Propagation : IEC60332-3-22
Halogen Free: IEC60754-1/2
Low Smoke Capacity: IEC61034-1/2
Oxygen Index : ISO 4589-2
Temperature Index : ISO 4589-3
